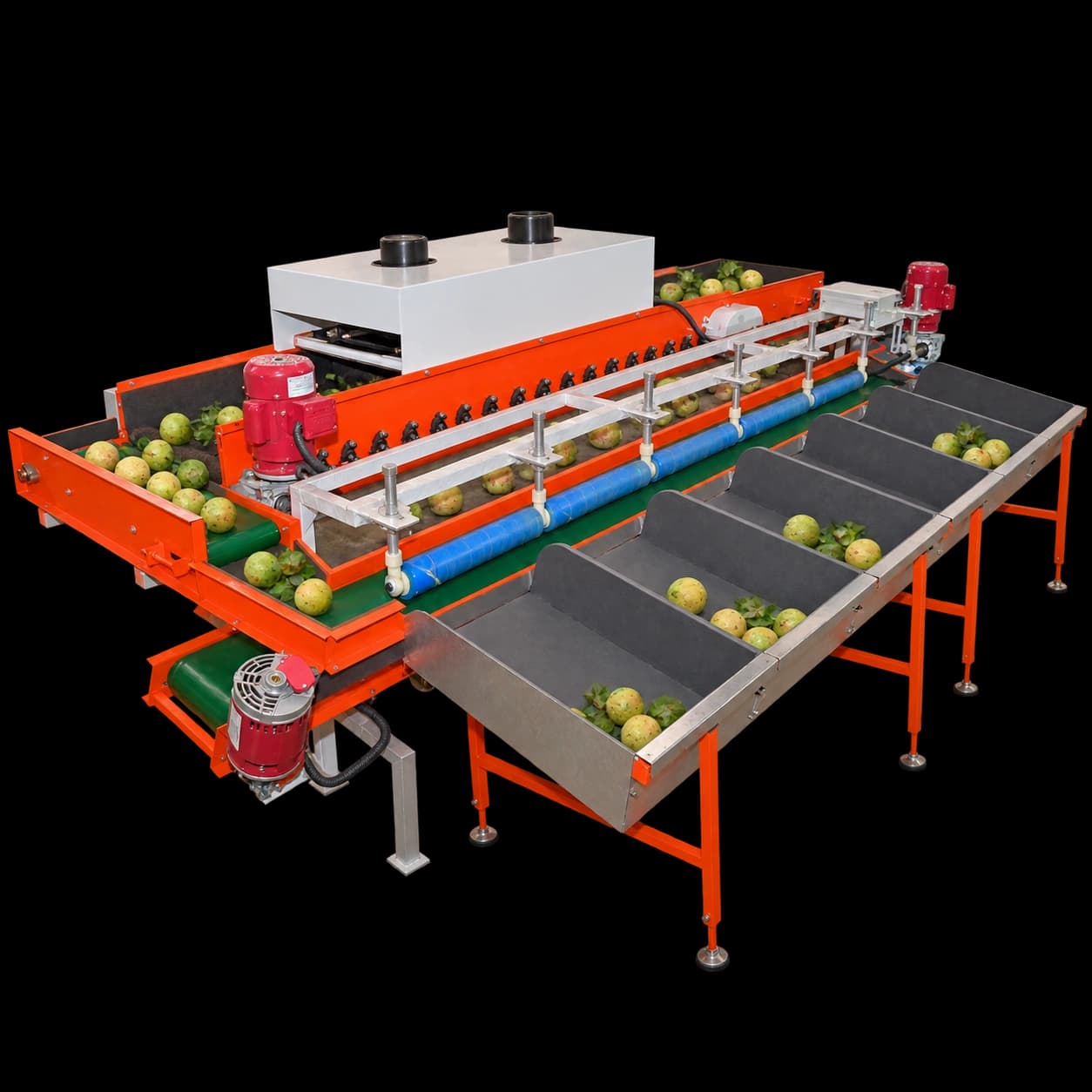

Guava Grading Machine
Gentle, high-speed sorting that keeps the shine on.
Guava Grading Machine specifications.
- Capacity
- 1–8 tons/hour
- Motor
- 2–15 HP, 3-phase, 440V
- Body Material
- Stainless steel (SS 304) or powder-coated mild steel
- Dimensions (L×W×H)
- 14 × 8 × 4 ft
- Weight
- 800 kg – 2.5 tons
- Warranty
- 1 year
- Size Grades
- 4 to 8
All specifications vary by configuration. Ranges shown span our smallest to largest build for this model. Tell us your requirement and we'll spec the exact machine.

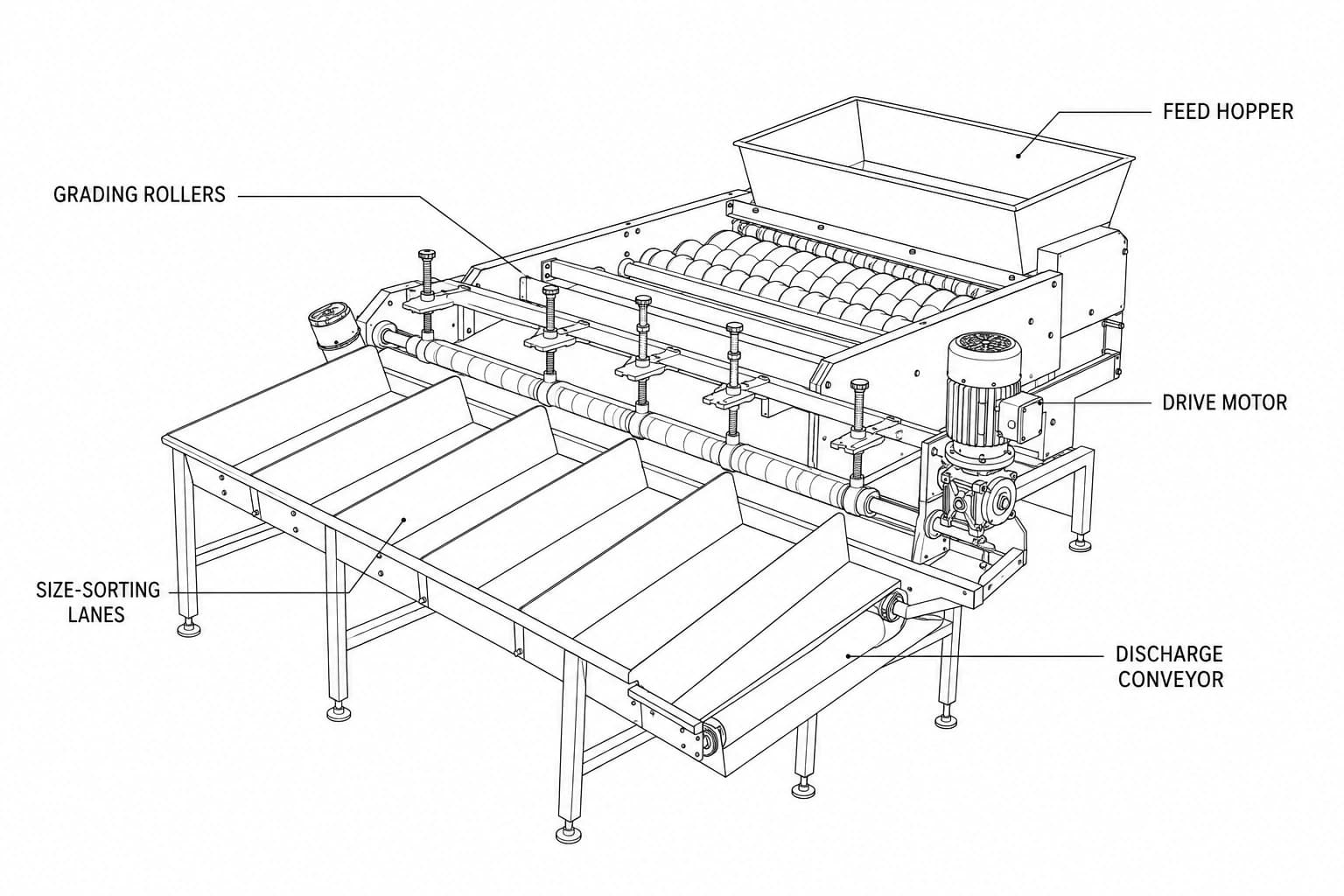

How the Guava Grading Machine works

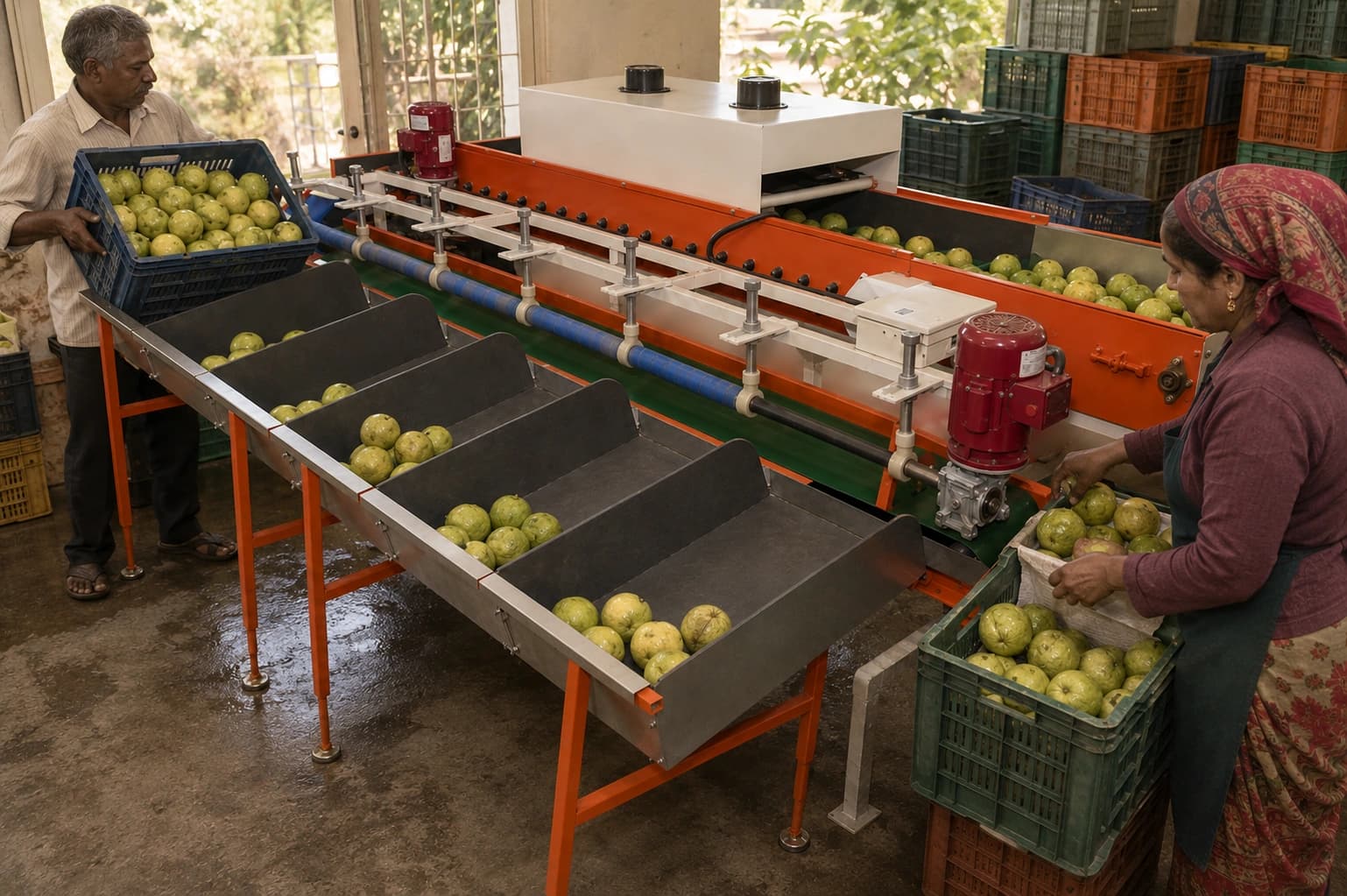

Guava skin marks easily, which is why this line runs on soft rollers instead of a hard conveyor bed. Fruit moves through the grading section at a configurable 1 to 8 tons an hour without the scuffing that knocks down its market grade. The compact frame fits into smaller packhouse footprints without giving up throughput.
Key features of the Guava Grading Machine.
Guava Grading Machine FAQs.
What's the throughput on a full working day?
Throughput is configurable from 1 to 8 tons an hour depending on the setup you choose, so it scales with your packhouse's daily volume.
Is this sized right for a smaller operation, or only large packhouses?
Its compact frame was built with smaller farms in mind. It scales down in footprint without losing throughput.
How do we clean it between batches?
The open roller design wipes down quickly with water and a cloth, no disassembly needed for a routine clean.
How much floor space does the line need?
A standard build runs about 14 by 8 feet and stands roughly 4 feet high. Leave walking room on both sides for loading and for pulling out damaged fruit, so plan for a little more than the machine's own footprint.
What power connection does it need?
A standard 3-phase, 440V supply. Motor size depends on the configuration, from 2 HP on the smallest build up to 15 HP on the largest. Worth confirming your shed has 3-phase before ordering.
Get pricing and specs for the Guava Grading Machine.
Tell us your crop, daily volume, and shed size and we'll recommend a configuration and quote, usually within one business day.
